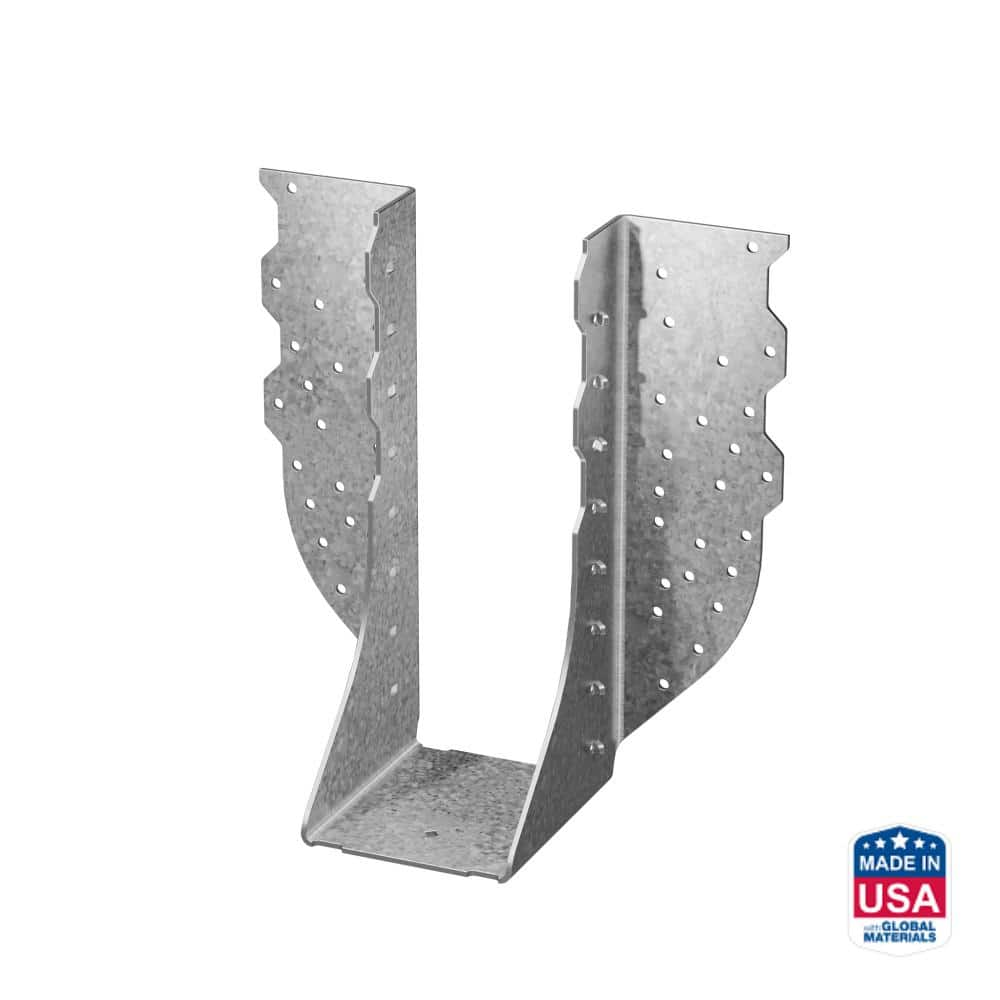

Simpson HGUS - 2" x 10" Double Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091280
Mfr. #: HGUS210-2
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $74.97
i h h

Description

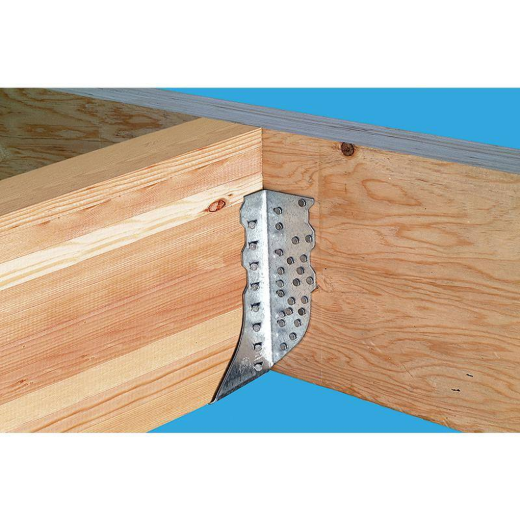

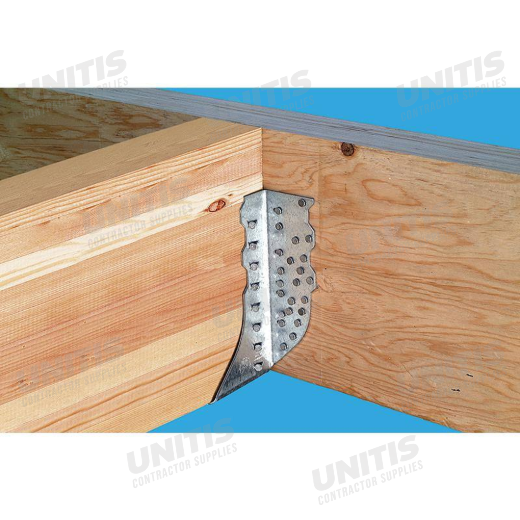

The Simpson HGUS210-2 is an extra-heavy-capacity face-mount hanger designed for applications requiring robust girder support. This girder hanger utilizes innovative double-shear nailing, which distributes the load through two points on each joist nail to provide superior strength and stability. Engineered for high-load performance at an economical price, it is ideal for demanding residential and commercial structural projects. Its versatile design allows for installation even after the beam has been secured in place.
  • Double-shear nailing for increased strength
  • 12-gauge galvanized steel construction

Features

  • Extra-heavy-capacity girder support design
  • Can be installed after the beam is secured
  • G90 galvanized finish for corrosion resistance
  • Tested, load-rated, and code-compliant
Products specifications
Width 3-5/16 inch, 3-5/16 inch, 3-5/16 inch
Model Number HGUS210-2
Joist Size Double 2x10
Material 12-Gauge Steel
Finish G90 Galvanized
Height 9-3/16 inch
Base 4 inch
Header Fasteners 46 - 0.162 inch x 3-1/2 inch Nails
Joist Fasteners 16 - 0.162 inch x 3-1/2 inch Nails
*
*
*
