Simpson PC - 4x Post Cap 16Ga ZMAX

Mfr.: Simpson Strong-Tie
Item #: I092861
Mfr. #: PC4Z
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $35.68
i h h

Description

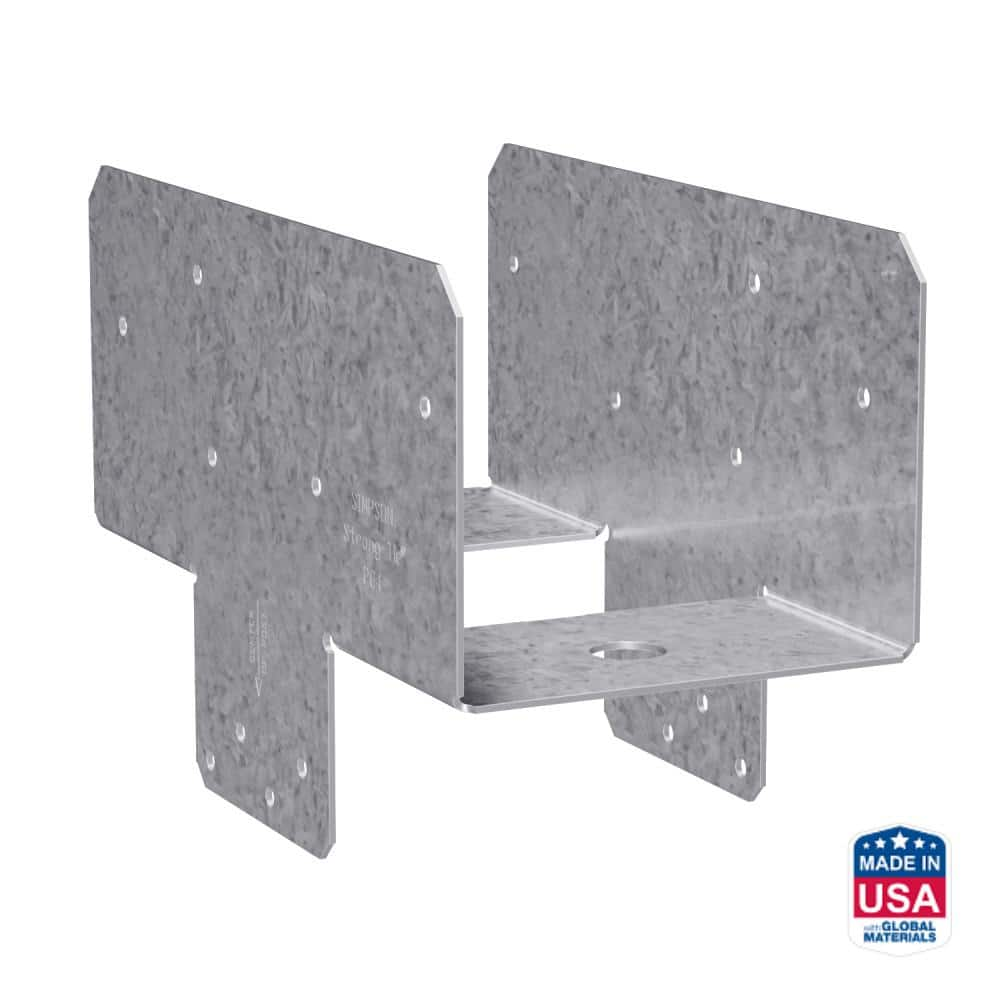

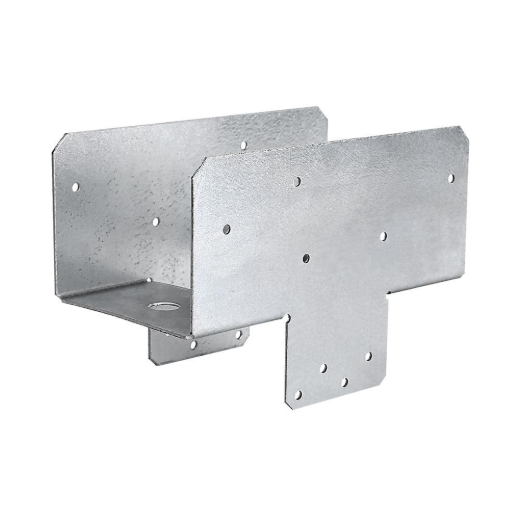

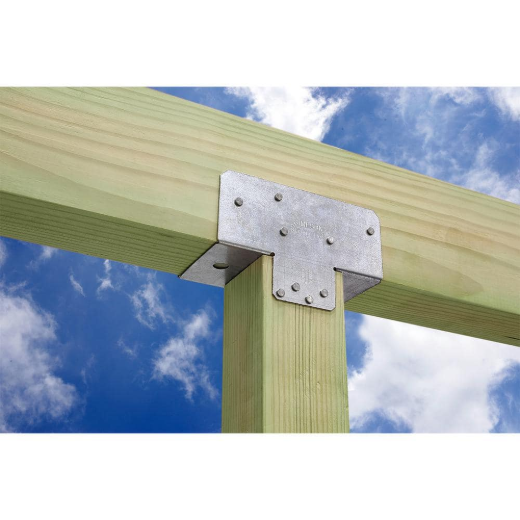

The Simpson Strong-Tie PC4Z post cap is engineered for efficient and straightforward post-to-beam connections. Its design features in-line post and beam flanges, allowing a single model to accommodate various post sizes, simplifying project planning and execution. The ZMAX galvanized finish provides reliable corrosion resistance, making it suitable for diverse environmental conditions. This post cap ensures a secure connection, reducing installation time and effort. Ideal for deck framing, pergolas, and other structural applications, it offers a dependable solution for both new construction and retrofitting projects.
  • ZMAX Galvanized Finish
  • 16-Gauge Steel Construction

Features

  • In-line flanges accommodate multiple post sizes.
  • Designed for fast and easy installation.

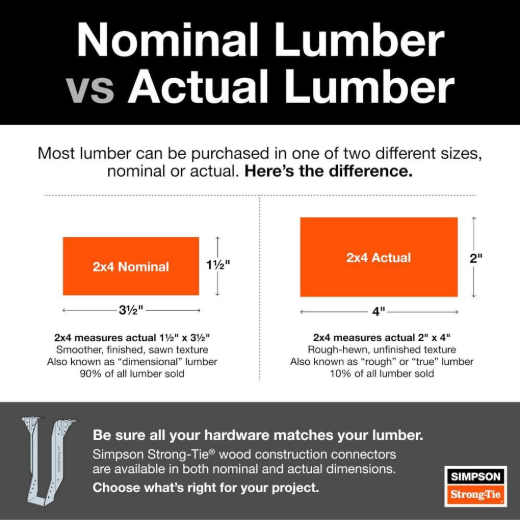

  • Suitable for 4x nominal lumber posts.
  • Compatible with 10d (0.148 inch x 3 inch) common nails or Strong-Drive SD Connector screws.

Includes

  • 1 x Simpson Strong-Tie PC4Z Post Cap
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-2604
Connector Type Post Cap
Country of Origin Varies (subject to change)
Finish / Coating ZMAX (G185)
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x
Series PC
*
*
*
