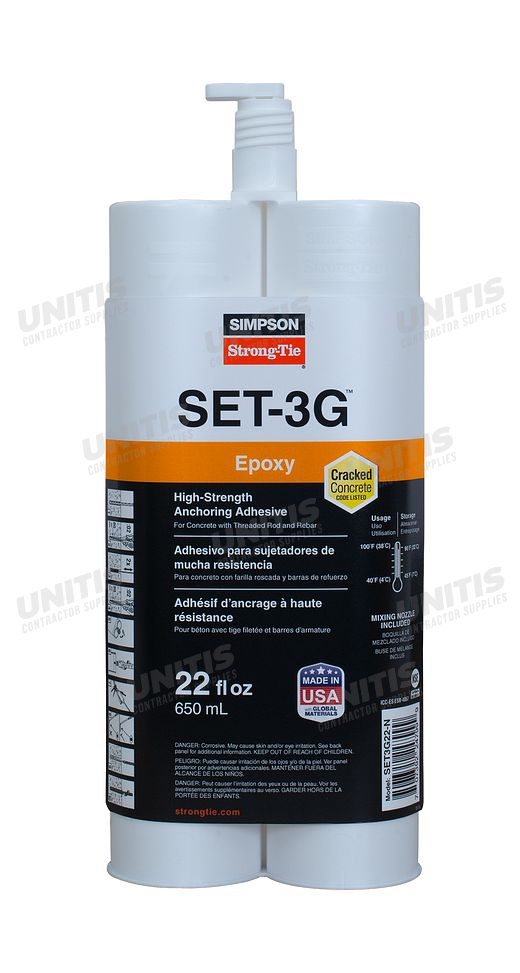

Simpson SET-3G Epoxy with Nozzle & Extension - 22 oz.

SET-3G is the latest innovation in epoxy anchoring adhesives with high design strength and proven performance. SET-3G is a 1:1 ratio, two-component, anchoring adhesive for concrete (cracked and uncracked). SET-3G installs and performs in a variety of environmental conditions and temperature extremes.

Key Features

• Exceptional performance — superior bond strengths permit ductile solutions in high seismic areas
• Design flexibility — improved sustained load performance at elevated temperature
• Jobsite versatility — can be specified for all base material conditions when in-service temperatures range from -40°F (-40°C) to 176°F (80°C)
• Recognized per ICC ES AC308 for post-installed rebar development and splice length design provisions
• Code listed for installation with the Speed Clean^™ DXS, dustless drilling system without further hole cleaning
• Wire brush hole-cleaning system for conventional blow-brush-blow cleaning method for anchoring
• With higher bond strengths, ductile solutions can often be achieved with SET-3G in high seismic areas
• Low-odor formulation
• 1:1 ratio, two-component, high-strength, epoxy-based anchoring adhesive formula
• When properly mixed, SET-3G will be a uniform gray color
• Suitable for use in cracked and uncracked concrete
• Suitable for use in dry, water-saturated, water-filled and submerged concrete
• Use with threaded rod or rebar
• Substrate installation temperature from 40°F (4°C) to 100°F (38°C)
• In-service temperature range of –40°F (–40°C) to 176°F (80°C)
• For best results, store between 45°F (7°C) and 90°F (32°C)
• 24-month shelf life
• Volatile organic compound (VOC) — 2 g/L
• Manufactured in the USA using global materials
